- Daylight Zoom: X40 (X20+X2 digital)
- FOV: 60° WFOV-3° WFOV-1.5° DFOV
- Thermal Resolution: 640×480
- Weight: 125 grams
Watchful Guardians of the Sky
Unrivalled Surveillance with Our Multi-Rotor ASTRA-S
Experience Advanced Surveillance Capabilities
ASTRA-S is a sophisticated Surveillance Drone designed to deliver high precision and reliable data for surveillance applications. Its robust construction ensures safe and efficient operations even in challenging environments. With ASTRA-S, surveillance tasks become effortless, allowing you to monitor with unmatched precision and efficiency.
Low Maintenance, High-Performance ASTRA-S is engineered for minimal maintenance requirements, providing you with a reliable and costeffective surveillance solution. Its powerful performance and ease of operation allow you to focus on gathering critical data without worrying about maintenance hassles.
Max Flight Time
0 mins
Operational Range
Upto 0 kms
Maximum Wind Resistance
0 m/s
Weather Proof
IP 0
Key Features
Autonomous Surveillance
ASTRA-S is equipped with advanced autonomous navigation capabilities, leveraging GPS, IMU, and precise sensors. It can autonomously plan and execute its surveillance path, minimizing the need for constant human intervention. Its dynamic route adjustments ensure safe and precise surveillance operations.
Superior Surveillance Payloads
ASTRA-S comes equipped with state-of-the-art surveillance payloads, including high-resolution cameras, thermal sensors, and night vision cameras. These cutting-edge sensors provide clear and detailed visuals, enabling comprehensive surveillance even in challenging lighting conditions.
Extended Flight Time
With advanced battery technology, ASTRA-S offers extended flight durations. Its energy-efficient design allows for longer flights, enabling you to cover larger surveillance areas and conduct prolonged monitoring operations.
Secure Communication and Easy Interface
ASTRA-S features a user-friendly ground control station with an intuitive interface. Operators can effortlessly define surveillance areas, set parameters, and monitor real-time data during the mission. The drone utilizes encrypted data transmission protocols for secure communication, safeguarding sensitive surveillance information.
Portable and Quick to Deploy
ASTRA-S boasts a compact and lightweight design, allowing easy transportation and swift deployment. Its portability ensures rapid response and seamless data acquisition during time-critical surveillance missions.
Autonomous Surveillance
ASTRA-S is equipped with advanced autonomous navigation capabilities, leveraging GPS, IMU, and precise sensors. It can autonomously plan and execute its surveillance path, minimizing the need for constant human intervention. Its dynamic route adjustments ensure safe and precise surveillance operations
Superior Surveillance Payloads
ASTRA-S comes equipped with state-of-the-art surveillance payloads, including high-resolution cameras, thermal sensors, and night vision cameras. These cutting-edge sensors provide clear and detailed visuals, enabling comprehensive surveillance even in challenging lighting conditions.
Extended Flight Time
With advanced battery technology, ASTRA-S offers extended flight durations. Its energy-efficient design allows for longer flights, enabling you to cover larger surveillance areas and conduct prolonged monitoring operations
Secure Communication and Easy Interface
ASTRA-S features a user-friendly ground control station with an intuitive interface. Operators can effortlessly define surveillance areas, set parameters, and monitor real-time data during the mission. The drone utilizes encrypted data transmission protocols for secure communication, safeguarding sensitive surveillance information.
Portable and Quick to Deploy
ASTRA-S boasts a compact and lightweight design, allowing easy transportation and swift deployment. Its portability ensures rapid response and seamless data acquisition during time-critical surveillance missions.
Efficient Mapping Solutions
Master Your Mission Environment
Explore Payload Options
-
Integrated Camera
-
Daylight Camera
-
Thermal Camera
Integrated Camera
Integrated Camera
Daylight Camera
Daylight Camera
- 10X Optical Zoom
- HD Daylight Camera
- Target Tracking Option
- 3 Axis Stabilised
Thermal Camera
Thermal Camera
- 640 x 512 LWIR Thermal Infrared
- Uncooled VOX Microbolometer
- Target Tracking Option
- 19mm, 3Hz
Mission-Critical Safety Features:
- Battery Failsafe: Strategically returns to base upon reaching critical battery levels.
- GCS Failsafe: Responds to Ground Control Station (GCS) communication loss with predefined actions
- Geofence: Enforces secure operational boundaries, enhancing situational control.
- RTL (Return to Launch): Initiates a secure and automated return to base protocol
Engineered for Precision and Accurate Data Collection with Post Processed Kinematics-RVT
In order to validate and tag your drone imagery to the ground for traditional drone surveying, you need a large enough number of Ground Control Points(GCP). GCP is a tedious task and high accuracy cannot be achieved. Positioning with centimeter accuracy in Post Processing Kinematics(PPK) for precise UAV mapping with less/no GCPs. ASTRA-S with PPK, collects better accurate data without the tedious GCP process. Easy Data Collection in reduced time and effort.
Enhancing Surveillance Solutions

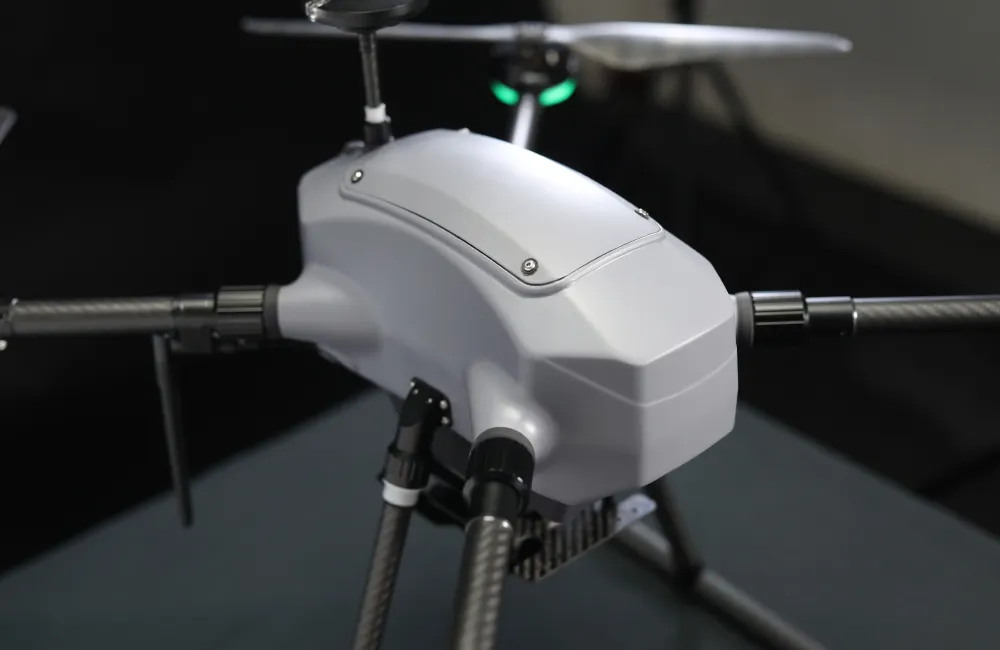

Compact Design The compact design of ASTRA-S offers exceptional portability and ease of use. Its streamlined build allows for effortless maneuverability, making it an ideal companion for surveillance missions in various settings.

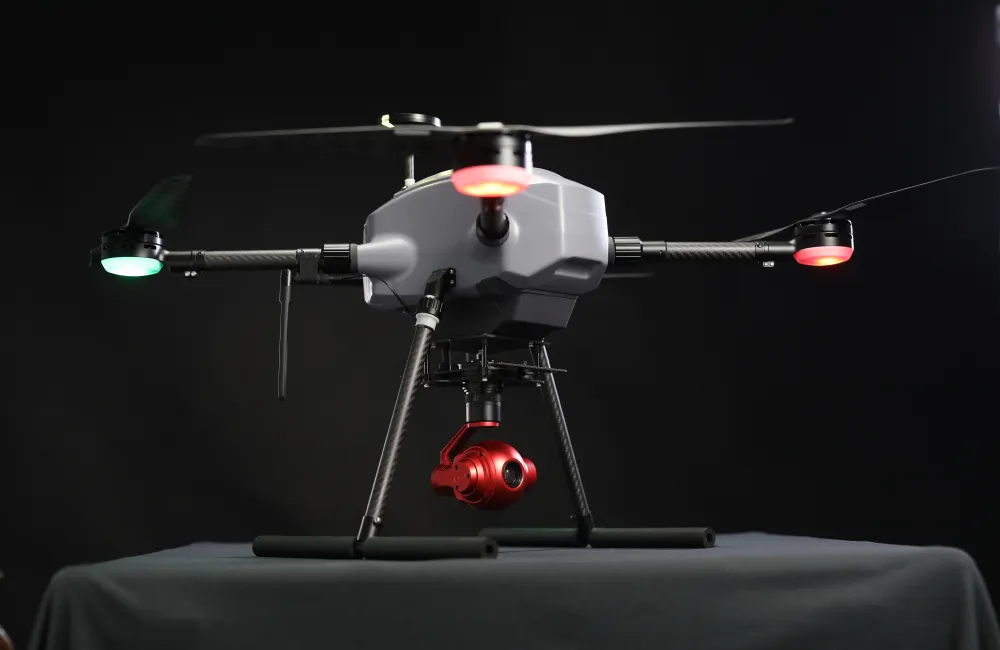

Waterproof Body ASTRA-S features a rugged and water-resistant body, enabling seamless flights in diverse weather conditions and over water bodies. Its durable design ensures uninterrupted surveillance operations, even in adverse weather.

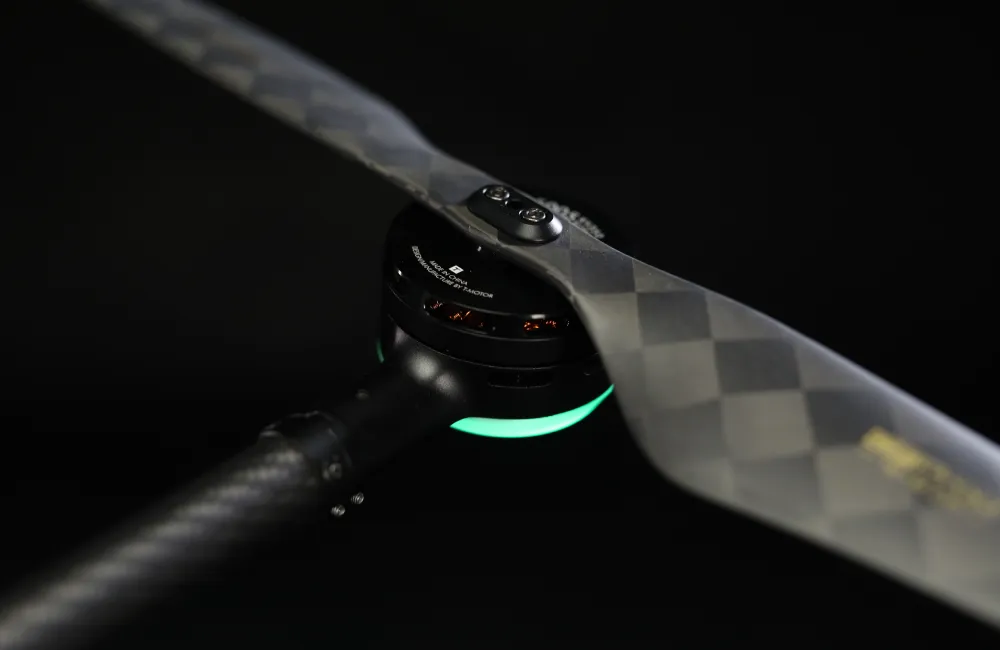

High Wind ResistanceThe drone's superior wind resistance ensures stable and controlled flights during gusty conditions. Its aerodynamic design and powerful propulsion system make it a reliable option for conducting surveillance in challenging environments.

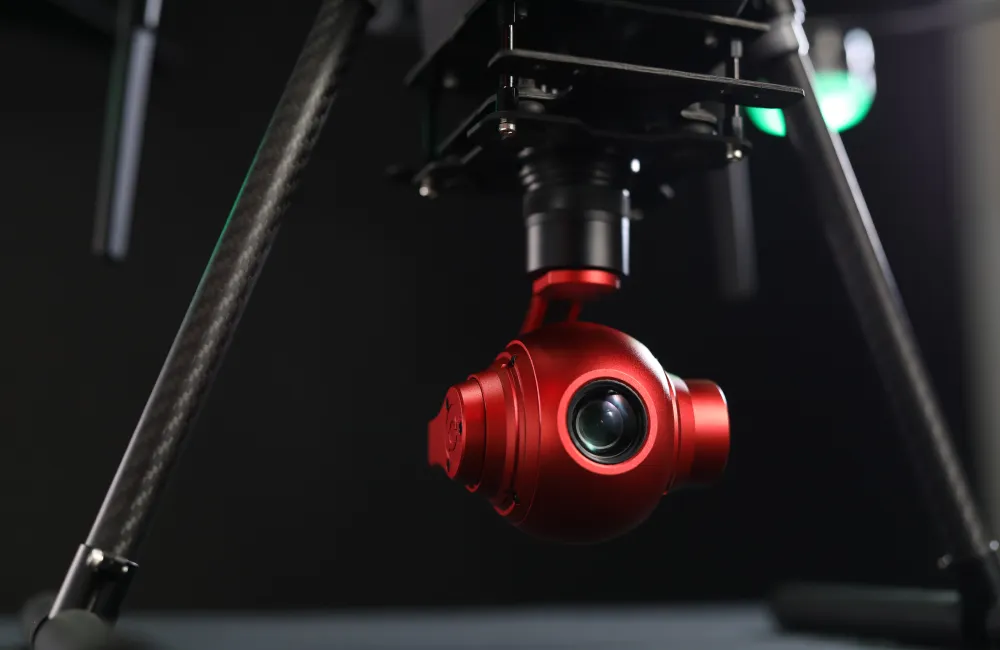

Ample Payload Capacity ASTRA-S provides ample space for mounting advanced surveillance equipment, cameras, and sensors. Its adaptable payload capacity empowers you to customize your surveillance setup for specific monitoring requirements.

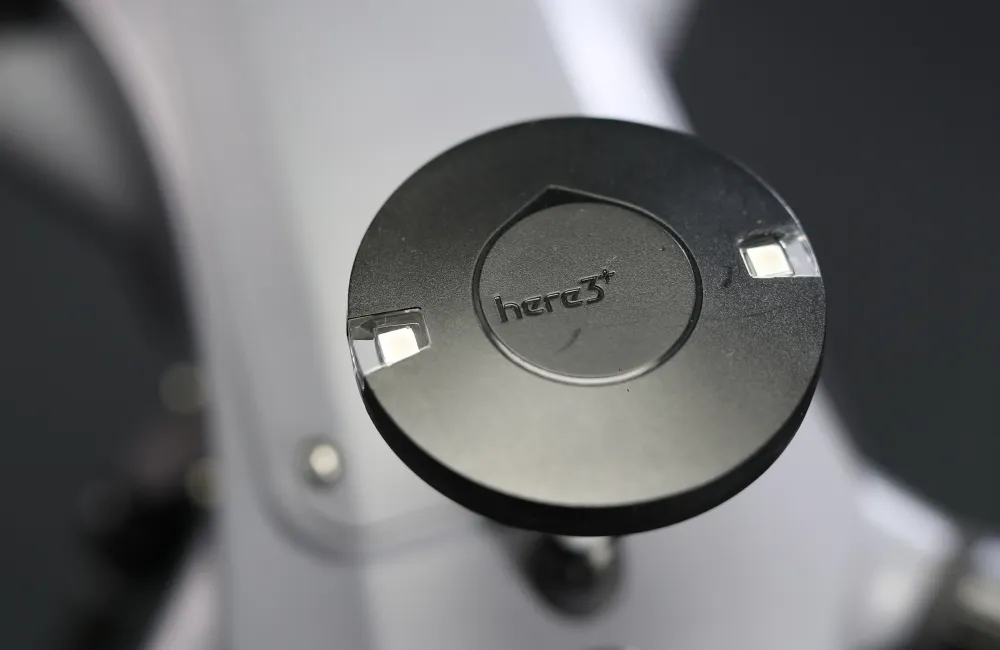

Autonomous NavigationWith advanced autonomous capabilities, ASTRA-S can efficiently perform surveillance tasks with minimal human intervention. From monitoring large areas to capturing high-quality visual data, this drone elevates surveillance precision and efficiency.
Get Up Close with ASTRA- S
Soar into Insights
Drone Category
Small Class UAV
Wheelbase
700 mm
Wind resistance at flight altitude
10 m/s at takeoff and landing & 10 m/s during flight
Battery
Lithium-Ion
Operating Frequency
2.4 GHz
MTOW
5.8 kg
Flight time (on a single battery)
60 minutes
GNSS Grade
RTK Enabled onboard GNSS along with Base (Master) GNSS receiver
Failsafes
- Return Home on Comms failure
- Return Home/Land on low battery
- DUAL GPS on-board for GPS failure
- Terrain Avoidance
Propulsion
Electric
Maximum Operating Altitude
400 m AGL
Cruise Speed
5 – 10 m/s
Deployment Time
< 5 minutes
Working temperature
-10°C to 55°C
Max payload
1.5 kg
Landing and Takeoff
VTOL
Communication
Upto 10 kms
Absolute X, Y, Z accuracy
< 10 cm
See How the ASTRA-S Drone Can be Used in Your Industry
Get your hands on the Smartest, Fastest & Most Versatile Solution
Unlock the limitless potential of ASTRA-S today.
